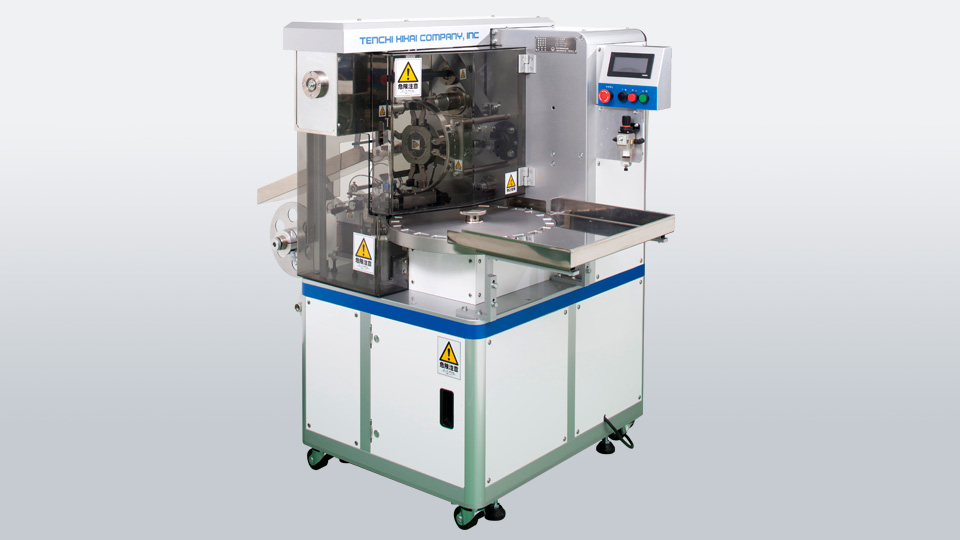

SIMPLIFIED WRAPPING MACHINE MODEL TA-320 (Twist Wrapping / Single-Twist Wrapping)
- Simply replacing parts enables use for twist wrapping, single-twist wrapping, and fold packaging with the same machine.
- The manual feed layout enables packaging of soft or varied products which were problematic with previous automatic feeding machines.
- The cutting pitch can be adjusted freely.
- The space-saving design reduces the installation space required.
- Can be connected to Tenchi’s special automatic feeding machines.
- The manual feed layout enables packaging of soft or varied products which were problematic with previous automatic feeding machines.
- The cutting pitch can be adjusted freely.
- The space-saving design reduces the installation space required.
- Can be connected to Tenchi’s special automatic feeding machines.
Main Specifications
- Capacity
- Maximum 120 pieces/minute
- Application
- Candies, chocolates, Japanese and Western sweets, delicacies, etc.
*Capacity varies depending on aspects such as the shape and properties of the product as well as the film material used.
Demo Movie
TWIST WRAPPING MACHINE MODEL TA-150
- Hygiene has been greatly improved over previous twist wrapping machines.
- Can be connected to feeders for a wide range of products.
- Can be used for products which were previously difficult to wrap, such as those with irregular shapes, which are soft, and which are sticky.
- Can be connected to feeders for a wide range of products.
- Can be used for products which were previously difficult to wrap, such as those with irregular shapes, which are soft, and which are sticky.
Main Specifications
- Capacity
- Maximum 500 pieces/minute
- Applicable Products
- Candies, milk confectionery, caramels, etc.
- Product Dimensions
- 15mm(φ)～25mm(φ), 15mm(φ)～25mm(φ)x8～15mm(T)
*Capacity varies depending on aspects such as the shape and properties of the product as well as the film material used.
HIGH SPEED TWIST WRAPPING MACHINE MODEL TA-210
- Can twist wrap at a high speed of maximum 1,500 pieces/minute.
- Includes automatic splicer.
- Includes automatic feeder device.
- Includes automatic splicer.
- Includes automatic feeder device.
Main Specifications
- Capacity
- Maximum 1500 pieces/minute
- Application
- Candies, milk confectionery, caramels, etc.
Demo Movie
TWIST WRAPPING MACHINE MODEL TA-700
- Enabling the use of polyethylene film (OPE) makes significant reductions in packaging material cost possible.
- Simply replacing parts enables use for other products on the same machine.
- Simply replacing parts enables use for other products on the same machine.
Main Specifications
- Capacity
- Maximum 650 pieces/minute
- Application
- Candies, chocolates, toffees, salami, jellies, cheese, etc.
- Option
- Automatic splicer and mark aligner, signal tower, printer, belt discharger, and waste paper preventer
*Capacity varies depending on aspects such as the shape and properties of the product as well as the film material used.
TWIST WRAPPING MACHINE MODEL TA-770
- The most advanced and fastest vertical twist wrapping machine in Japan, with a maximum capacity of 650 pieces per minute.
- Cleaning and maintenance have been made easier.
- Waste paper preventer is standard equipment.
- Film fitting is via the air chuck system.
- Cleaning and maintenance have been made easier.
- Waste paper preventer is standard equipment.
- Film fitting is via the air chuck system.
Main Specifications
- Capacity
- Maximum 650 pieces/minute
- Application
- Candies, chocolates, toffees, salami, jellies, cheese, etc.
- Option
- Automatic splicer and mark aligner, signal tower, printer, belt discharger, double wrapping device and seam detector
SINGLE-TWIST WRAPPING MACHINE MODEL TA-800
- This machine enables simply beautiful wrapping by folding one side and twisting the other.
- Replacing parts enables use for other products on the same machine.
- Replacing parts enables use for other products on the same machine.
Main Specifications
- Capacity
- Maximum 250 pieces/minute (varies depending on products and specifications)
- Application
- Candies, chocolates, etc. (ovoid, oblong, etc.)
SEAL-TWIST WRAPPING MACHINE MODEL TA-500
- Can reduce moisture absorption while retaining the delicate beauty of the twist.
- Direct connection to Tenchi’s special automatic feeding machines enables use not only for candy, but also for delicacies and a wide range of confectionery products such as chocolates, biscuits, beika rice crackers, and manju sweet buns.
- Direct connection to Tenchi’s special automatic feeding machines enables use not only for candy, but also for delicacies and a wide range of confectionery products such as chocolates, biscuits, beika rice crackers, and manju sweet buns.
Main Specifications
- Capacity
- Maximum 400 pieces/minute
- Application
- Candies, chocolates, manju sweet buns, delicacies, etc.
*Capacity varies depending on aspects such as the shape and properties of the product as well as the film material used.
